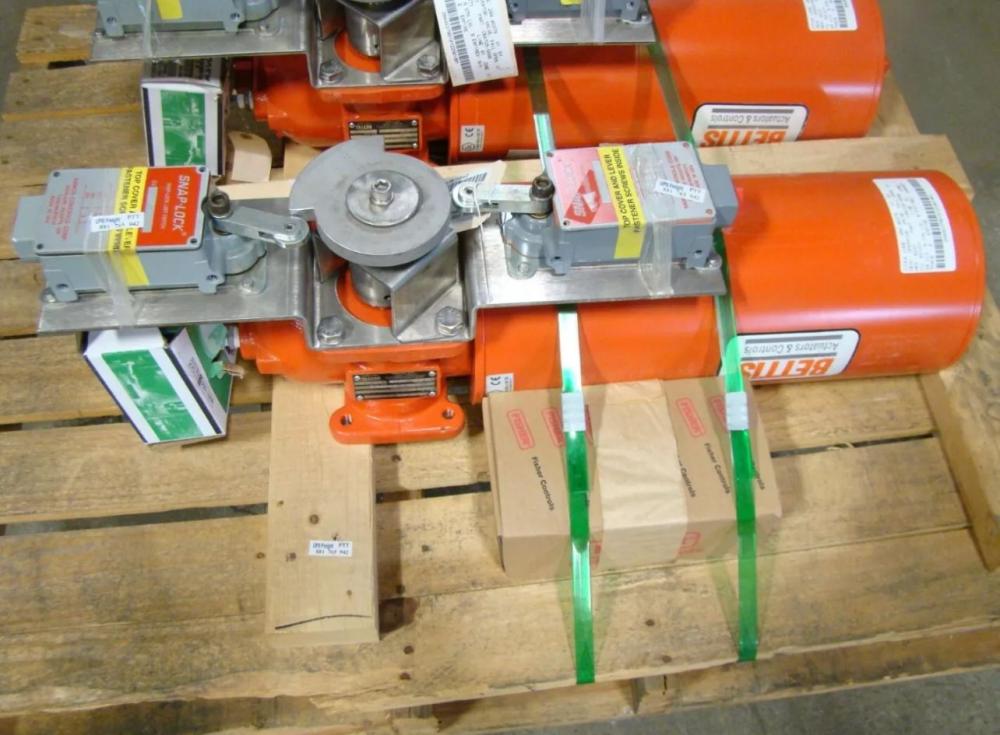

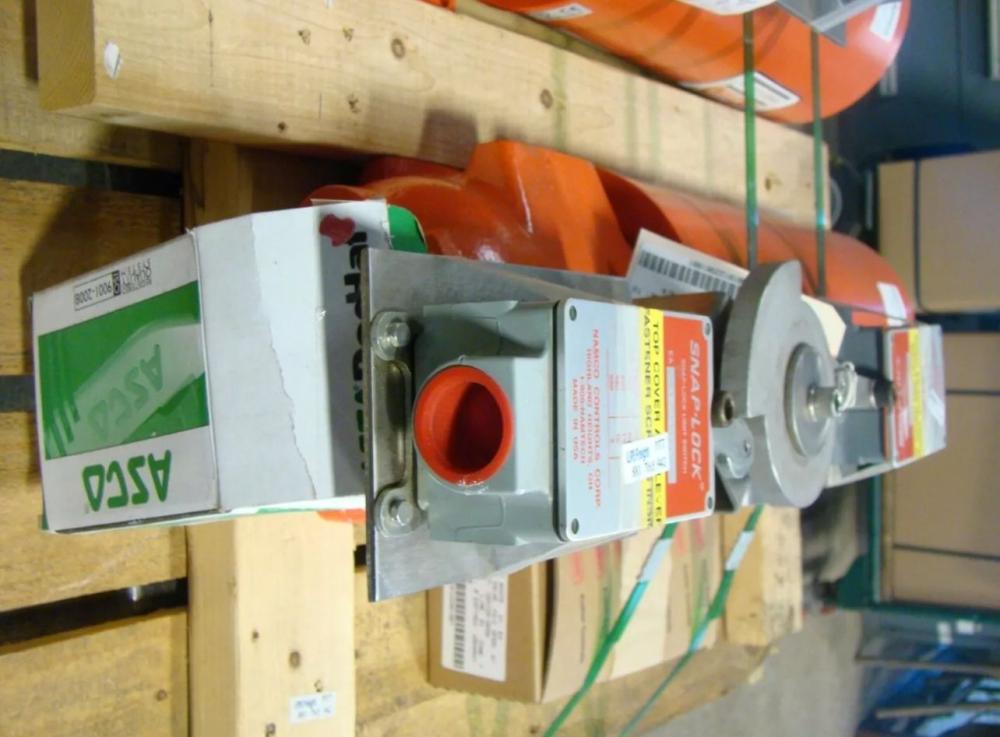

Bettis CBA300 Series Scotch Yoke Pneumatic Valve Actuator
The Bettis CBA300 is a pneumatic actuator that combines the strengths of the G-Series actuator and is compact, lightweight, efficient and very cost-effective.
Kategori: Actuator Valve
Brand: Bettis-Emerson
Power SourcePneumatic Product TypePneumatic Actuator ActuationFail-Safe, Quarter-turn, Spring-Return, Double-Acting CertificationsATEX, PED, (CE), SIL capable, NACE, TRCU/EAC/GOST, ABS Control TypeOn/off Valve TypeBall, Butterfly, Non-Lubricated Plug Valves, and Other Quarter-Turn Devices Operating TemperatureStandard range: -20°F to +200°F (-29°C to +93°C). Optional range: to -40°F (-40°C) or to +350°F (+177°C) Torque/ThrustSpring-return models in excess of 10,457 lbs-in (1,182 Nm), Double-acting in excess of 20,030 lbs-in (2,273 Nm) Operating Pressure40 to 150 psig (3 to 10 bar)
