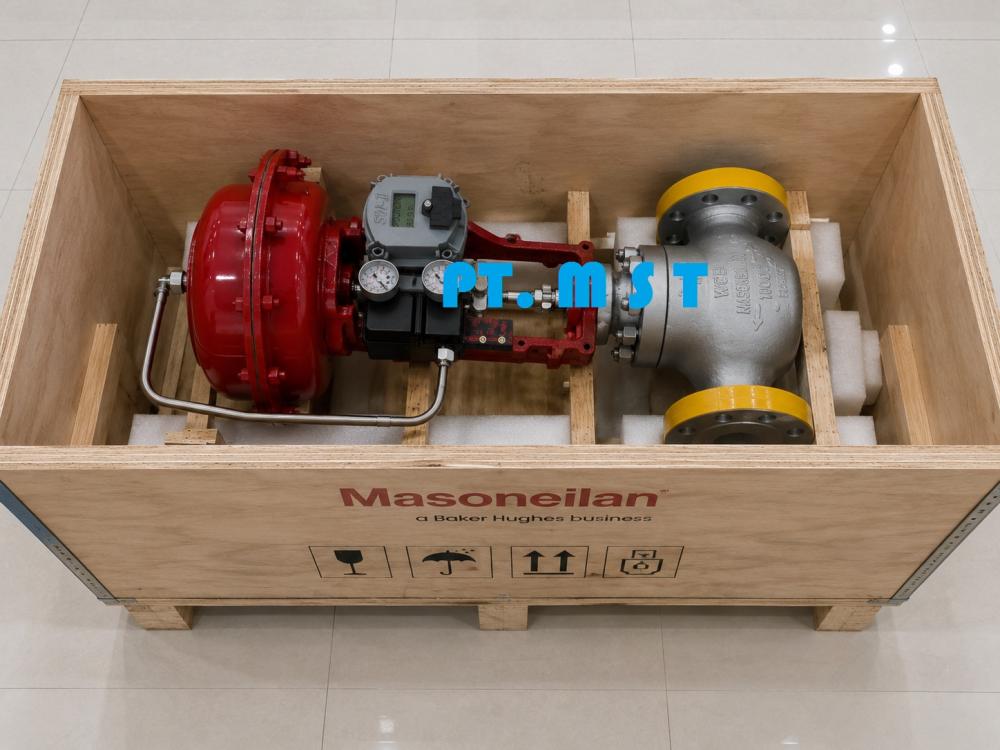

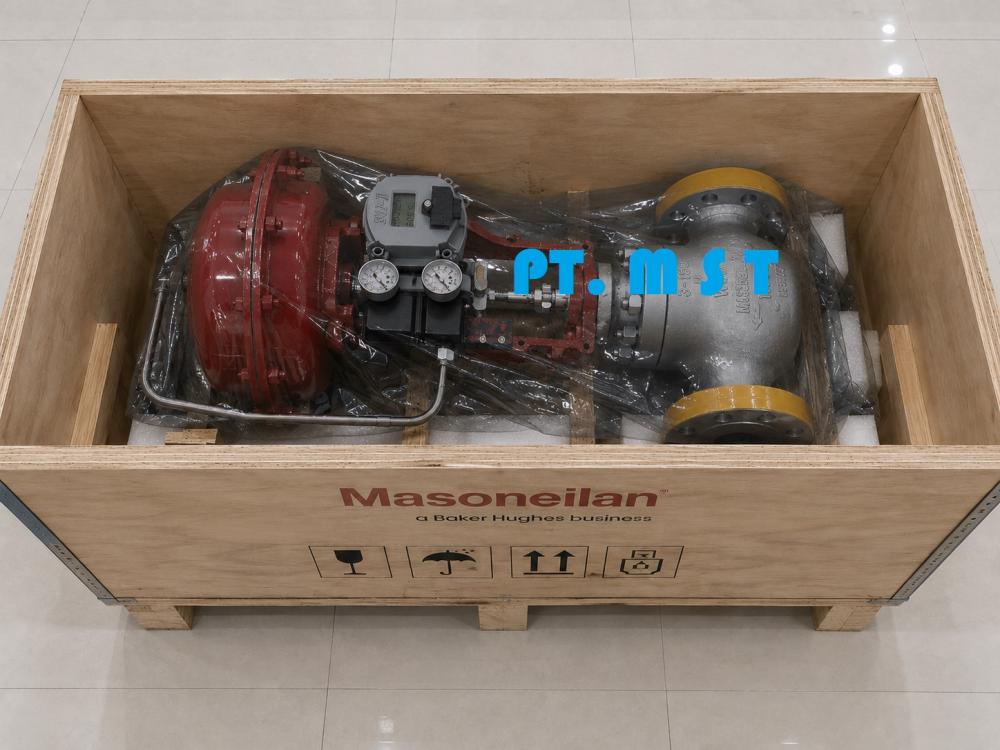

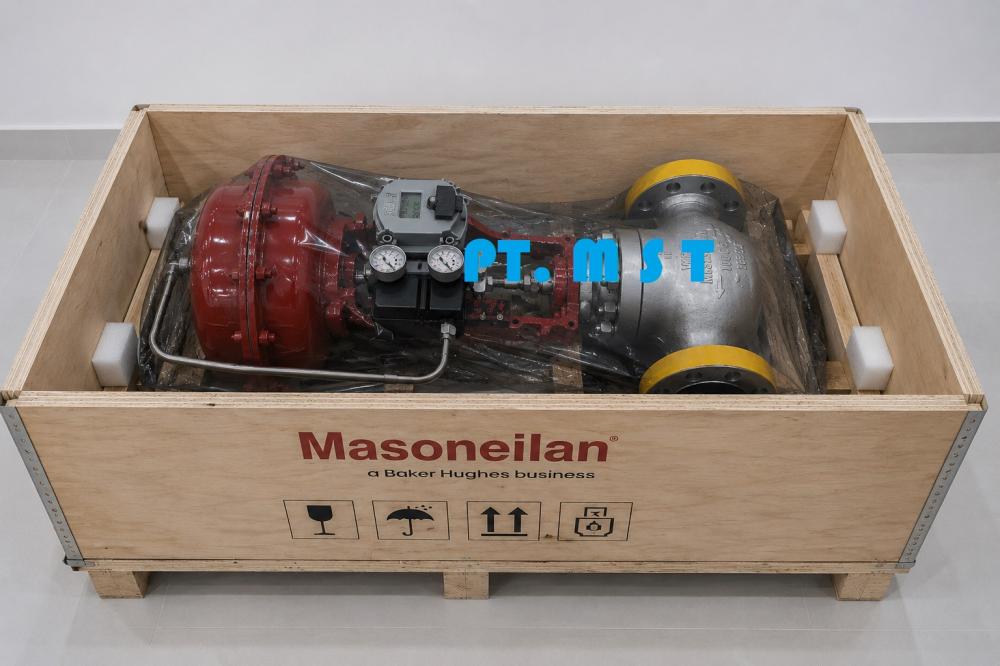

Masoneilan 21000 Series Single Port Valve
Baker Hughes offers the Masoneilan 21000 Series heavy top-guided globe valve for a wide range of automated process control applications. The 21000 Series product line features a single-ported design configuration, which permits numerous trim, actuation, and instrumentation solutions including: Lo-dB* Noise Attenuation Anti-Cavitation Reduced Capacity & Low Flow Trim Cryogenic Configuration Tight Shutoff Environmental Packing Advanced Digital Positioning & Control
Kategori: Control Valves
Brand: Masoneilan
Size 3/4” through 8” (20 through 200 mm) Ratings & Connections Flanged: ANSI 150 – 2500, UNI-DIN 10 - 400 Welded: BW or SW Screwed: NPT 3/4” through 2” (20 through 50 mm) Body Materials carbon steel; stainless steel; chrome-moly Actuators model 87/88 multi-spring diaphragm; cylinder Trim single seat plug top guided; Lo-dB and anti-cavitation trims, single or double stage are available Inherent Characteristics linear or equal percentage
