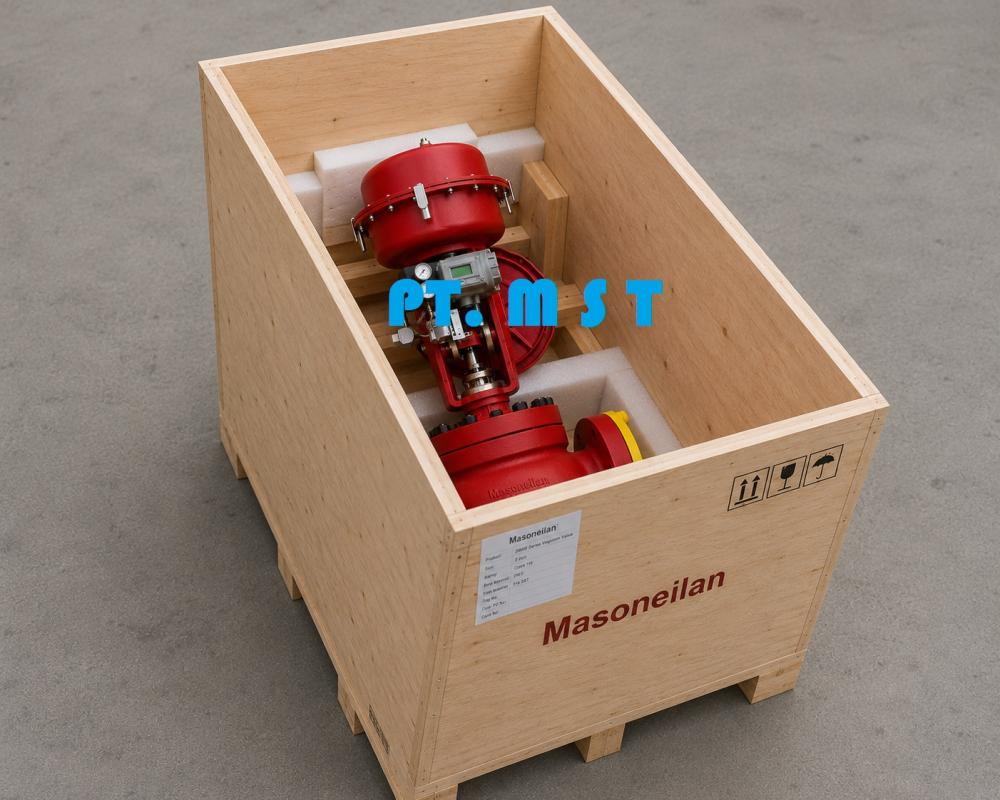

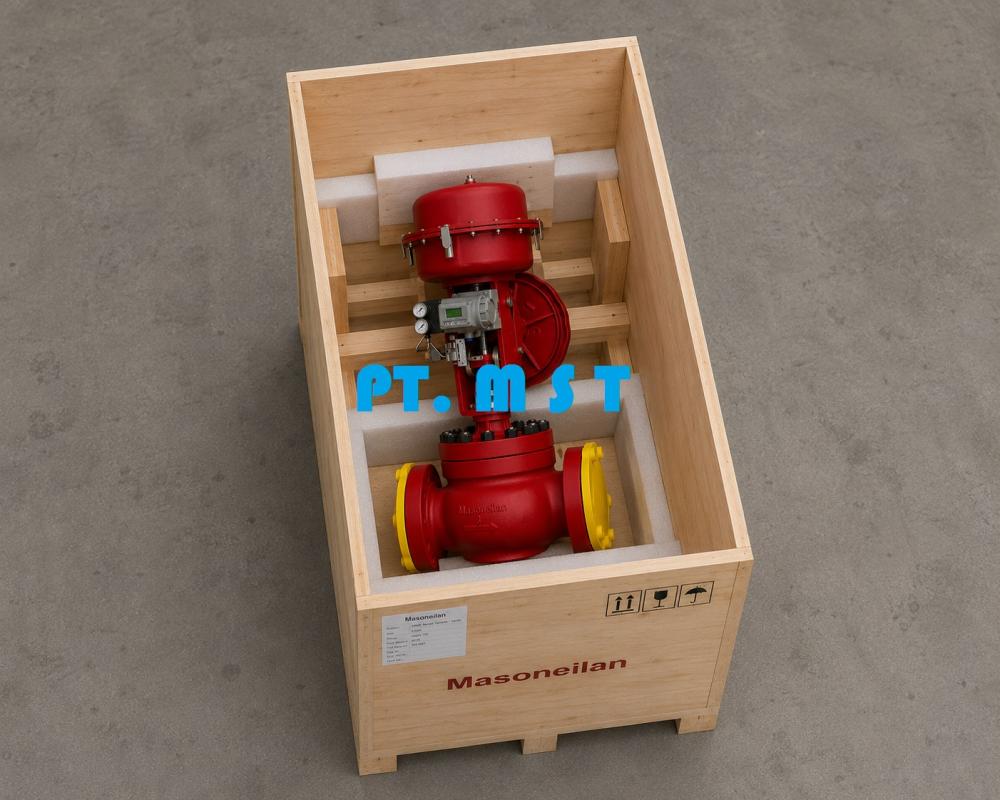

Masoneilan 41005 Series Cage Guided Valve
The Masoneilan 41005 Series heavy duty control valve features balanced trim configurations. This product line offers efficient and stable operation under demanding process conditions, including applications with high-pressure drops and large temperature variations. Optional features include noise attenuation trim, anti-cavitation designs, and various balance seal options to meet a wide range of pressure and temperature requirements.
Kategori: Control Valves
Brand: Masoneilan
Masoneilan 41005 Series Cage Guided Valve Size 2” through 24” (50 through 600 mm) Ratings & Connections Flanged: ANSI 150 – 2500, UNI-DIN 10 - 400 Welded: BW or SW Screwed: NPT 2” (50 mm) Body Materials carbon steel; stainless steel; chrome-moly Actuators model 87/88 multi-spring diaphragm; 51/52/53 piston-cylinder Trim balanced cage-guided trim; Lo-dB, anti-cavitation and VRT (Variable Resistance Trim), single and multiple cages are available Inherent Characteristics linear or equal percentage
