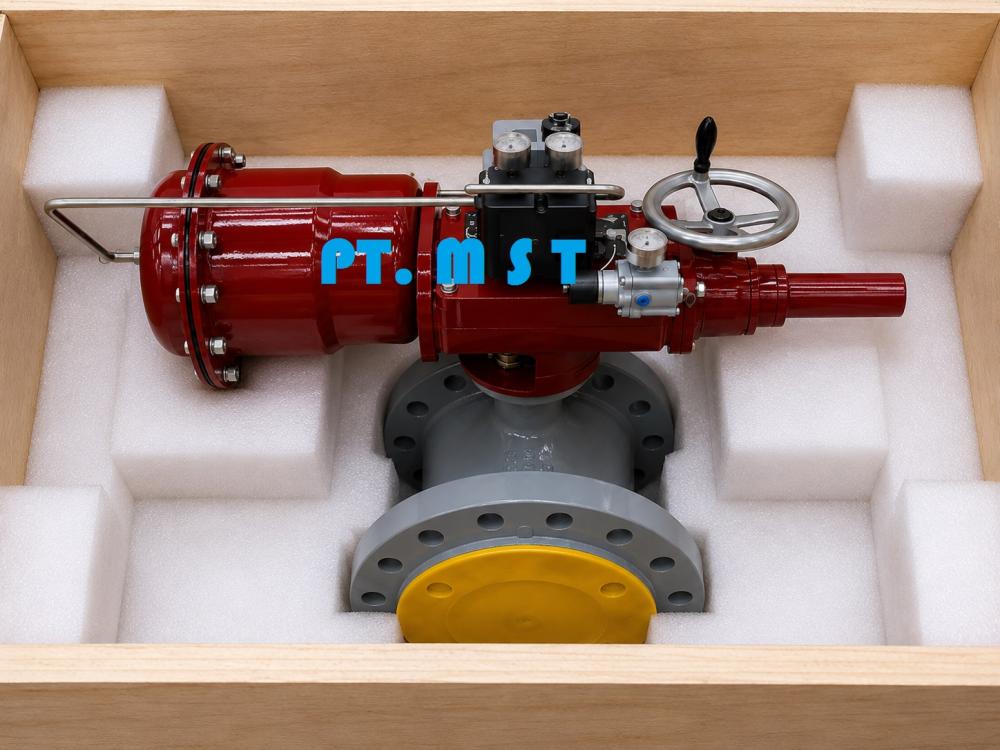

Masoneilan 36005 Series V-Max™ Control Ball Valve

These high-capacity V-ported control ball valves offer automatic throttling capability with flexible shutoff options, simplified maintenance needs, and enhanced operational reliability. The V-Max* rotary control valve offers high-capacity, heavy-duty automatic throttling capability.The valve’s advanced design features offer substantial benefits, including: Simplified alignment. The valve’s integrally cast raised face flanges (in compliance with ASME 150 or 300 Class standards) eliminate the need for long tie rods, significantly simplifying the alignment process. Installation flexibility. To meet a variety of application needs, the valve is available with two different face-to-face dimensions: standard construction complies with ISA S75.04 and IEC 534-3-2 standards and a short pattern complies with the ANSI B16. Enhanced flow capacities. A straight-through flow pattern provides exceptional capacities, while the patented dual-characterized V-port ball combines an equal percentage flow characteristic with highcapacities and greater than 500:1 rangeability. Excellent leakage control: A standard EF(emission free) seal packing system provides long-term, zero leakage† shaft sealing performance.

Kategori: Control Valves
Brand: ⁠Masoneilan
