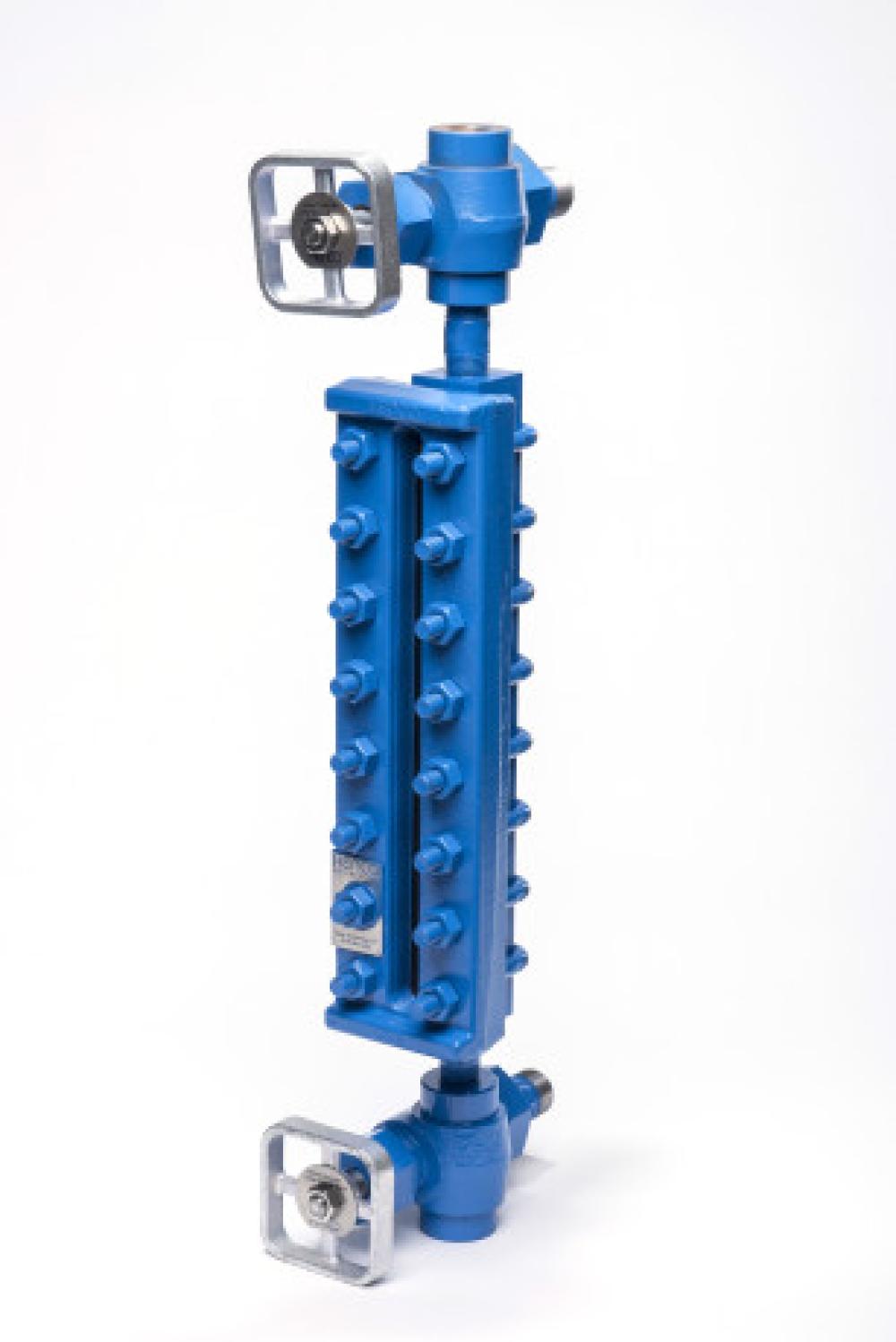

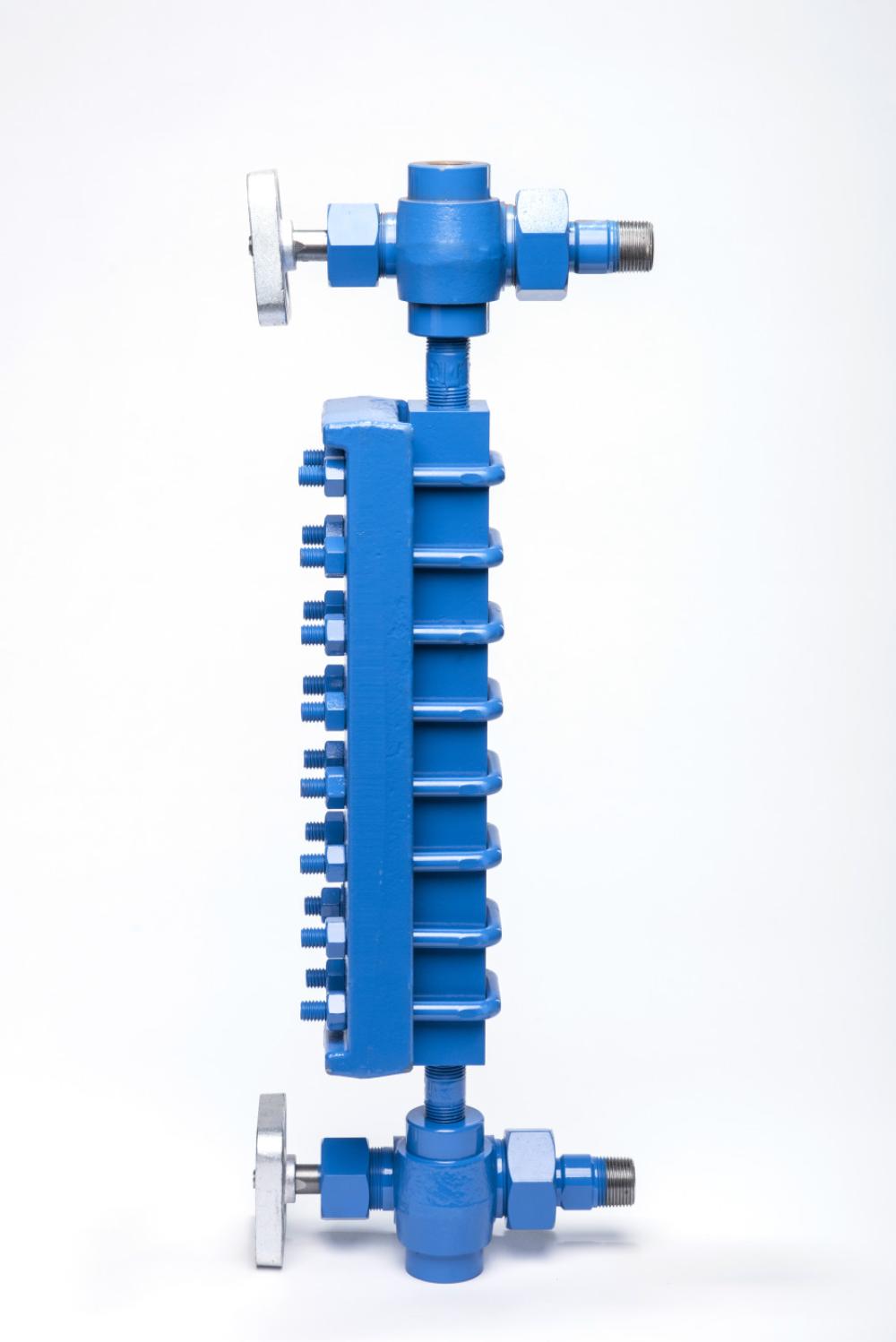

HIGH PRESSURE FLAT GLASS GAUGES
KENCO High Pressure Flat Glass Gauges have a superior rugged design for the most demanding process conditions. Standard carbon steel gauges meet the requirements of NACE MR0175. Unlike other manufacturers, there is no additional charge for NACE. All materials meet or exceed ASTM specifications. Model KHR Reflex Gauges can reach pressures up to 4000 psig (275.79 bar). Model KHT Transparent Gauges can handle pressures up to 3000 psig (206.84 bar). While these gauges are not specifically designed for steam service, the Model KHR gauges will perform at saturated steam pressures up to 300WSP. The Model KHT will perform at saturated steam pressures up to 450WSP. Mica shields are recommended for Model KHT when used in steam. Shields cannot be used with Reflex Gauges.
Kategori: Sight Glass
Brand: Kenco - USA
Flat Glass Gauges have been in use for over 100 years. They give you the ability to directly view the process fluid under temperature/pressure conditions that would render most other level technologies useless. Their construction is very robust, and reliable. They define the term “simple to use”. After installation, the only tool you will need is your eyes. Flat Glass Gauges are relatively inexpensive as compared to most other level technologies. Other Features They do not need electrical power to operate. This can be a great advantage in the case of a power outage. Simple to install – no calibration is necessary. Can be used as a reference to check, or calibrate, other level technologies. Pressure rating from vacuum to 4000 psig (275.79 bar). Temperature rating from -50°F (-45.5°C) to 750°F (398.8°C) Carbon Steel / -150°F (-101.1°C) to 750°F (398.8°C) Stainless Steel Not affected by the chemical or electrical properties of the process liquid. Specific gravity, dielectric, conductivity, surface turbulence, vapor, foam, etc. no longer needs to be considered.
