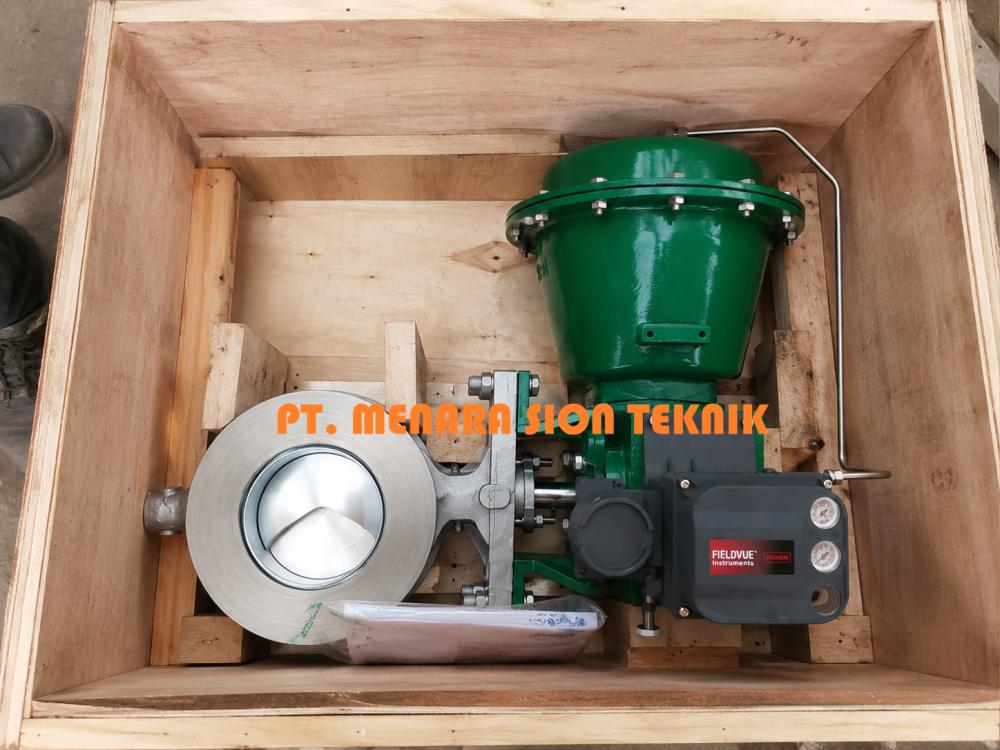

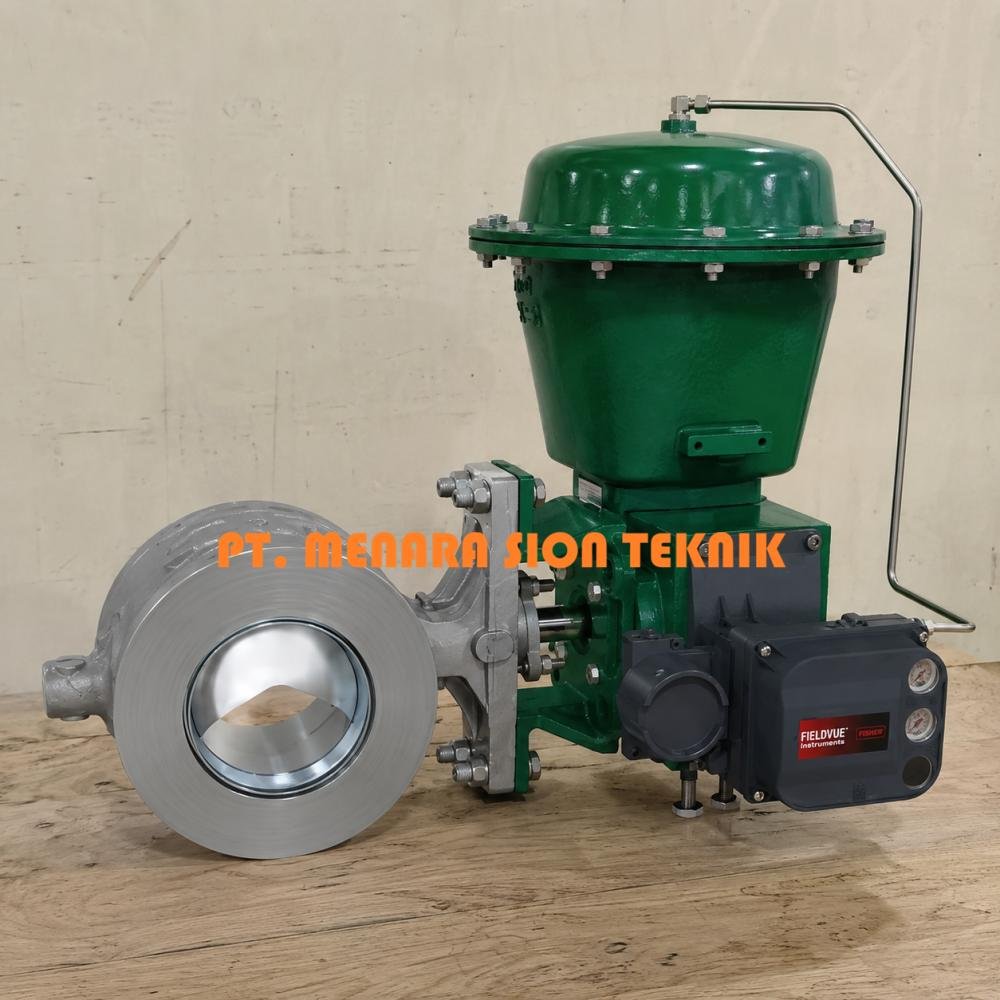

Fisher™ Vee-Ball™ V200U Rotary Control Valve
The V200U is a flangeless design that offers many of the favorable traits of the proven V150, V200, and V300 Series B Vee-Ball valves with the added feature of a reduced, compact face-to-face dimension design. The contoured segmented V-Notch ball promotes smooth, nonclogging operation and provides a shearing action between ball and the durable HD metal seal. The unrestricted straight-through flow design provides efficient, high capacity for gas, steam, liquids, and fibrous slurries.
Kategori: Control Valves
Brand: Fisher-Emerson
CertificationsPED, Fugitive Emission, NACE, ATEX Critical ServiceDirty Service, Erosive, Low Flow, General Service Flow CharacteristicsEqual Percentage MaterialCF8M / EN 1.4408 Dual Certified Operating TemperatureStandard Temperature Pressure ClassASME End ConnectionFlangeless Shutoff ClassClass IV (FCI 70-2) Valve SizeDN 80, DN 100, DN 150, DN 200, DN 250, NPS 3, NPS 4, NPS 6, NPS 8, NPS 10 Valve Size StandardASME, DN Other ConfigurationsContact your local Emerson office to learn about additional specifications or options for this product.
