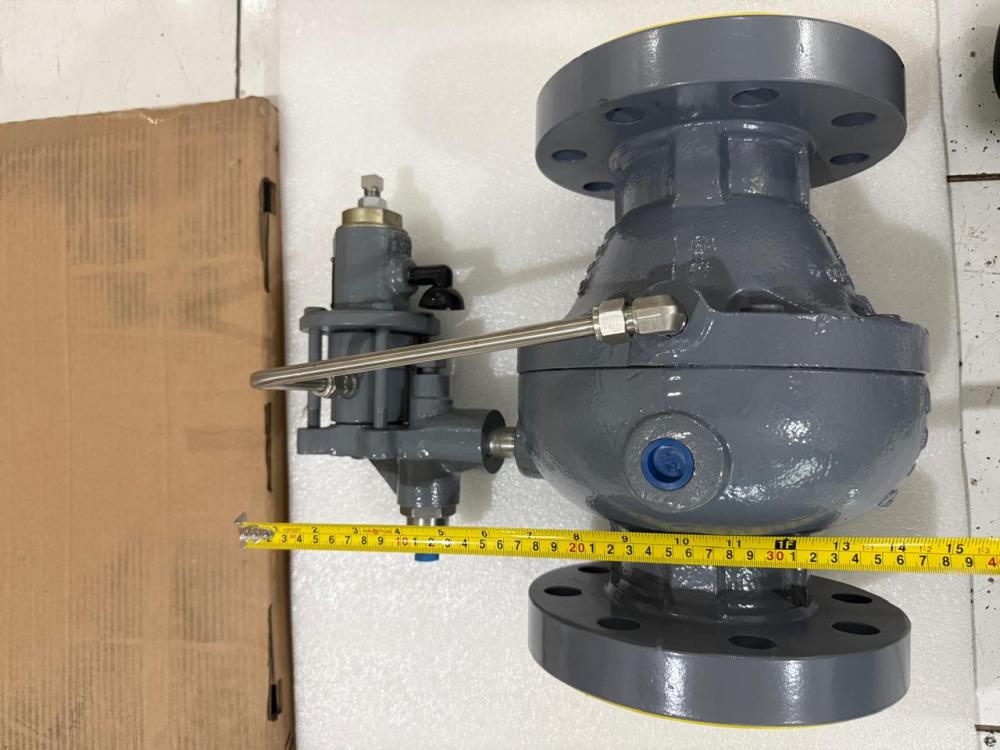

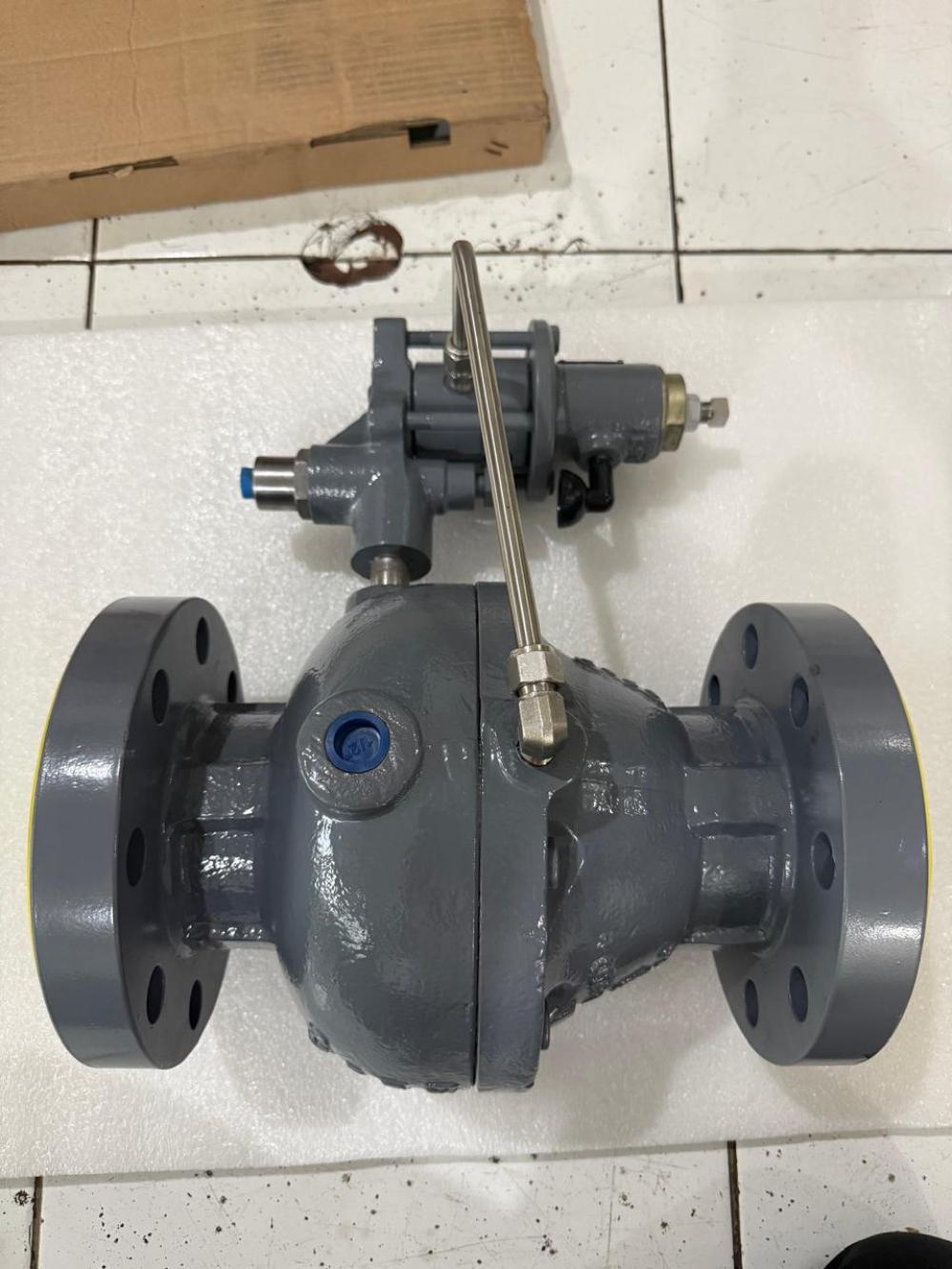

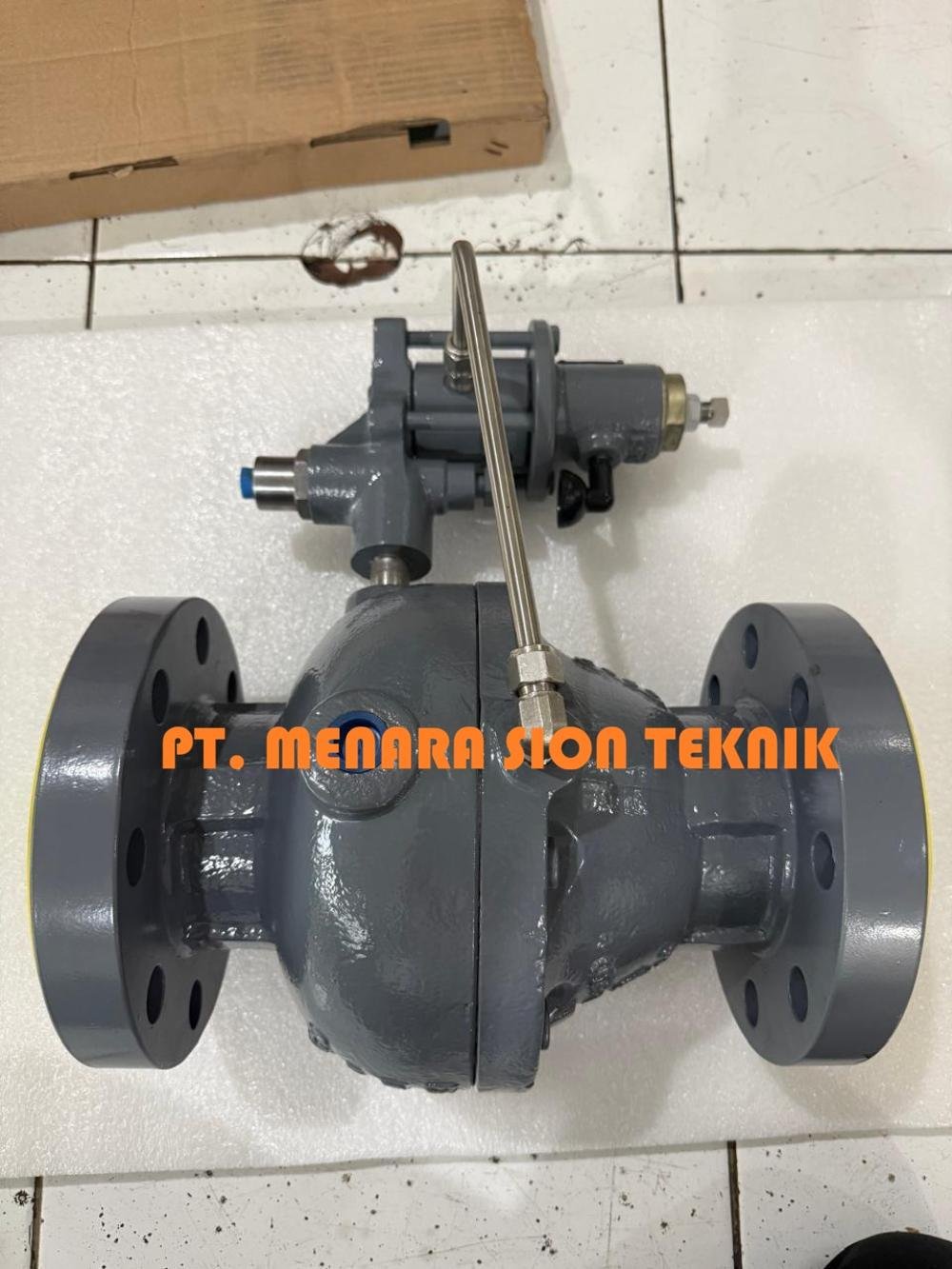

Pressure Reducing Regulator Type 310A Fisher
Type 310A fuel pressure regulator is used for high-pressure applications which require fast response such as fuel gas supply to a gas turbine or other large volume applications. The Type 310A fuel pressure regulator includes one Type 32A pilot assembly mounted on the main valve for pressure reducing or wide-open monitoring applications. Type 310A fuel pressure regulator has accurate control, tight shutoff, high capacity, and fast speed of response.
Kategori: Regulator
Brand: Fisher-Emerson
Body Sizes and End Connection StylesNPT: NPS 1 CL300 RF and CL600 RF: NPS 1, 2, 3, 4, or 4 x 6 / DN 25, 50, 80 100, or 100 x 200 Maximum Inlet Pressure1480 psig / 102 bar Maximum Outlet (Casing) Pressure1480 psig / 102 bar Outlet Pressure Ranges10 to 750 psig / 0,69 to 51,7 bar in five ranges Temperature Capabilities-20° to 300°F / -29° to 149°C
